Right Angle Gearbox•High Precision

KVX
KVX
KVX

KVX

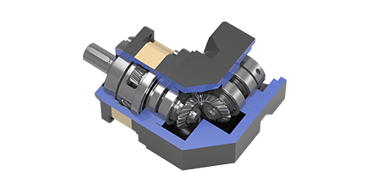

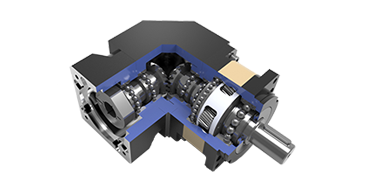

KVX is our highly successful high precision gearbox series.

The KVX is powerfully featured by the helical gearing system, gear grinding technology and patented Master CagedSpindle planetary carrier. The KVX is the ideal servo gearbox solutions for the high precision motion applications.

Options

  • - Output shaft key way, without key be available.

    - Synthetic lubrication grease, low temperature grease available.

    - Adaptor flange solution available.

Features

 Ratio: 3 - 100

 Backlash: 8 - 10 arcmin

 Nominal Output Torque: 42 - 1500 Nm
