The Unseen Foundation: How Material and Forging Forge Precision in Planetary Gearboxes

In the high-stakes realm of automation, the precision, reliability, and longevity of a planetary gearbox are non-negotiable. While advanced designs and flawless assembly capture attention, the true bedrock of performance lies deeper—in the molecular structure of the gear steel and the forging process that shapes its soul. For application engineers who specify and rely on these critical components, understanding this foundation is key to unlocking ultimate machine potential.

The Core Material: 20CrMnTi, The Quintessential Gear Steel

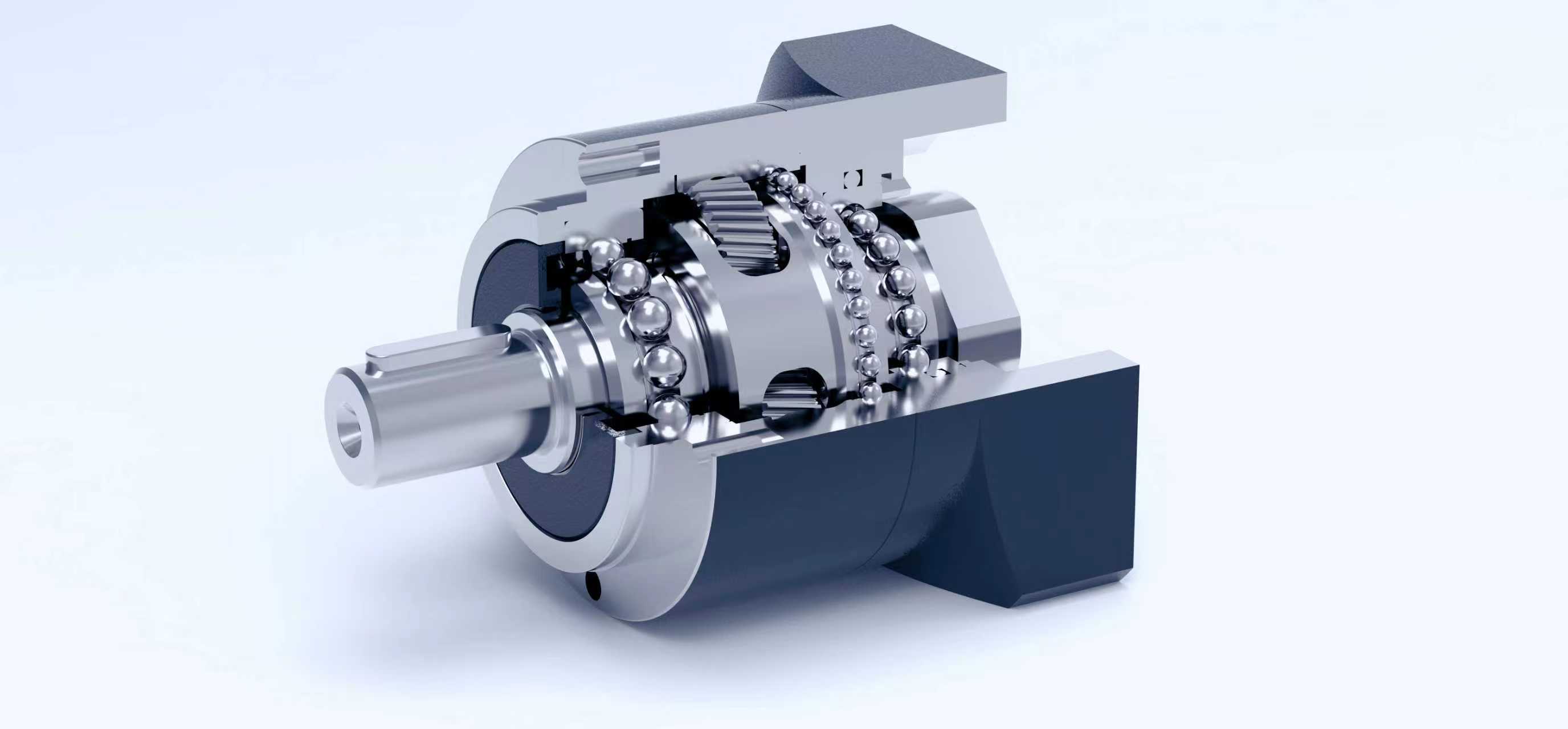

At the heart of our precision planetary gearboxes, for both the sun gear and planet gears, lies 20CrMnTi. This alloy steel is not chosen by accident; it is the result of a deliberate engineering decision for optimal performance.

Its genius lies in its response to heat treatment. Through a controlled carburizing and quenching process, 20CrMnTi develops a remarkable gradient structure: an ultra-hard surface (typically HRC 58-64) for exceptional wear resistance and pitting fatigue strength, coupled with a tough, ductile core (HRC 30-45) to absorb shock loads and prevent catastrophic tooth fracture. This "hard shell, tough core" paradigm is essential for handling the high cyclic stresses and potential impact loads within a compact planetary gearbox.

Furthermore, the Titanium (Ti) addition is a masterstroke. It forms stable carbides that inhibit austenite grain growth during the high temperatures of carburizing. The result Minimized thermal distortion. This exceptional dimensional stability after heat treatment is critical, as it allows for subsequent ultra-precise gear grinding (e.g., using KAPP NILES technology) to achieve micron-level accuracy and near-zero backlash—a prerequisite for high positional repeatability in automation.

The Shaping Force: Precision Hot Die Forging

A superior material is only as good as its initial grain structure. This is where our commitment to precision hot die forging for all critical gear forgings demonstrates a significant competitive advantage over simpler casting or standard forging methods.

In this controlled process, a heated 20CrMnTi billet is shaped under immense pressure within a precision-engineered die. This does more than just form a rough gear shape; it refines and aligns the metallic grain flow. The grain lines (flow lines) are contoured to follow the intricate geometry of the gear teeth, creating a continuous, unbroken fibrous structure.

The Compound Advantage: From Foundation to Performance

The synergy of premium 20CrMnTi and precision forging creates a compound effect that directly translates to measurable gearbox performance:

Superior Fatigue Life & Load Capacity: The forged, continuous grain flow acts like the grain in wood, providing a natural path for stress distribution. It drastically increases bending fatigue strength and resistance to tooth root fracture, especially under the high torque and reversing loads common in servo applications. This is the foundation of our gearbox's high overhung load and moment load ratings.

Exceptional Impact Toughness: The tough core of 20CrMnTi, combined with the refined, pore-free micro-structure from forging, gives our gears outstanding resilience. They can withstand the sudden shock loads encountered during machine jams, rapid reversals, or uneven cutting forces without cracking—a key factor in unpredictable industrial environments.

Long-Term Precision Retention: Precision forging ensures a homogeneous, dense material structure with minimal internal flaws. After precision grinding, this flawless base ensures that wear progresses evenly and predictably over time. The gearbox maintains its low backlash, high torsional stiffness, and positioning accuracy over a vastly extended operational life, reducing downtime and total cost of ownership.

Our Philosophy: Engineering from the Atom Up

While many manufacturers focus solely on final assembly tolerances, we engineer from the atom up. Our insistence on using 20CrMnTi for all stress-critical planetary components and subjecting them to top-tier forging is a testament to our philosophy: ultimate reliability is built in from the very first stage of material formation.

For the application engineer, this means a simple yet powerful guarantee: when you specify a gearbox built on this foundation, you are not just selecting a component. You are integrating a core of forged resilience and metallurgical precision into your machine—a foundation that ensures consistent, dependable performance through millions of cycles, securing the productivity and precision of the systems you design.
